High-Precision Duplex Dies
Designed specifically for the printing and folding carton sectors. Our duplex board dies are engineered with strict tolerances down to ±0.02mm, making them ideal for lightweight cosmetic packs, pharmaceutical cartons, and high-quality food boxes.
Premium Tooling for Retail Cartons

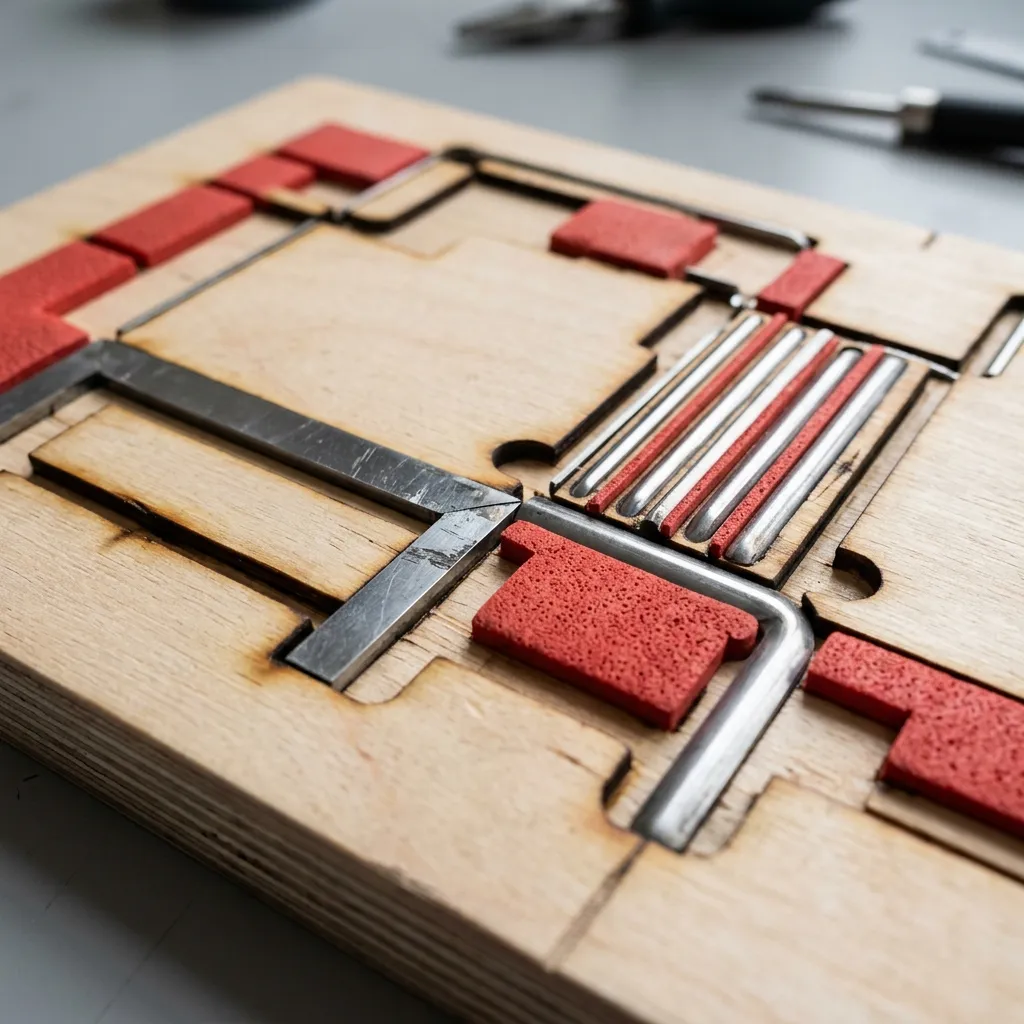

Our Duplex Dies are crafted using multi-layered premium birch plywood boards that resist warping and handle high-speed press pressures. By utilizing advanced automated rule processing setups (Autobenders), we shape premium steel cutting and creasing rules with absolute uniformity.
Every duplex die is designed with customized ejection rubbers to push out cleanly after the press stroke. This speeds up production runs and reduces paper fuzzing or tearing during die-cutting.
Engineering Specifications
Base Board Material
Multi-ply Premium Birch Plywood (12mm / 15mm / 18mm)
Steel Rule Height
23.80mm (Standard Carton Height)
Steel Rule Thickness
2 Pt (0.71mm) / 3 Pt (1.05mm)
Tolerances
±0.02mm (Laser cut accuracy)
Material Compatibility
Duplex Boards, Kraft, SBS (200 GSM - 450 GSM)
Production Output
Up to 100,000 continuous impressions
Duplex Dies FAQ
For lightweight duplex boards ranging from 200 GSM to 450 GSM, 2 Pt (0.71mm) cutting rules are standard. They provide clean, narrow cuts. Creasing rules are matched accordingly to accommodate board thickness and prevent hinge cracking.
Our 1000W CNC lasers cut channels with vertical precision. This prevents steel rules from tilting when loaded in high-pressure automatic platen presses, ensuring clean crease margins and avoiding carton alignment errors during automated folding-gluing operations.
Get a Custom Quote for Duplex Dies
Send us your structural design templates (.DXF, .CF2) or layout requirements, and our CAD department will get back to you with pricing details.
B2B NDA Protection
We keep your proprietary packaging structural layout CAD files fully secured under non-disclosure configurations.
